Breaker Management Relay Block 7VK610

Type : 7VK610

Features and technical specifications:
1. Breaker failure protection with short reset time and negligible overshoot time
2. Breaker failure protection with highly secure 2-out-of-4 current check detectors
3. Synchro-check with ΔV, Δϕ , Δf measurement
4. Auto-reclosure with ADT, DLC, RDT
5. Evolving/sequential trip recognition
6. RS485 Communication Port
The following functions are available:-
1. End-fault protection
2. Pole-discrepancy protection
3. Over voltage/under voltage protection
4. Single and/or three-pole auto-reclosure
5. Operational measured values
6. Self-supervision of the relay
7. Event buffer and fault protocols
8. Oscillographic fault recording

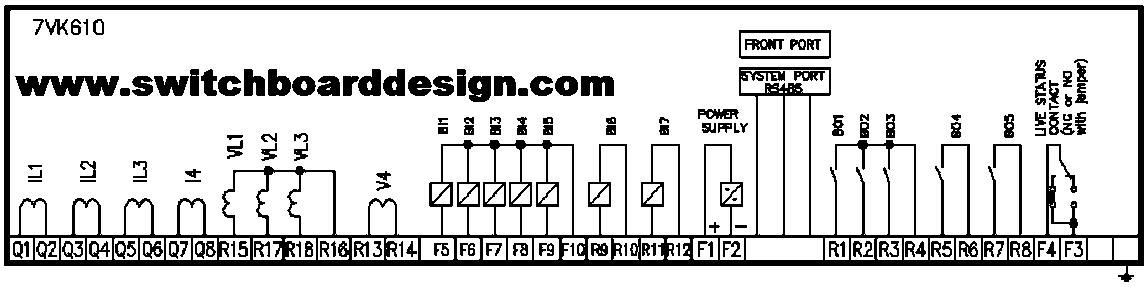

9. Switching statistics                                                                                                                                                                                                                                                                                                                                        This Breaker Management Relay block is easily insert in your schematic diagram and connect as you like way.                                                                                                                                 The SIPROTEC breaker management relay 7VK61 is a highly flexible auto reclosure, synchro-check and circuit breaker failure protection unit. This unit is used for the single and three pole auto-reclosure of a circuit-breaker, after this circuit-breaker has tripped due to a fault. The synchro-check function ensures that the two circuits being reconnected by closing the circuit-breaker are within a defined safe operating state before the CLOSE command is issued. The 7VK61 is also applicable as circuit breaker failure protection. A breaker failure occurs when the circuit-breaker fails to correctly open and clear the fault after single or three-pole trip commands have been issued by the protection. It is then necessary to trip the relevant bus bar zone (section) to ensure fault clearance. Together with the above-mentioned protection functions, the following additional functions of the 7VK61 can be applied end-fault protection, pole-discrepancy protection, over voltage protection and under voltage protection. As a member of the numerical SIPROTEC 4 relay family, it also provides control and monitoring functions and therefore supports the user with regard to a cost-effective power system management.
