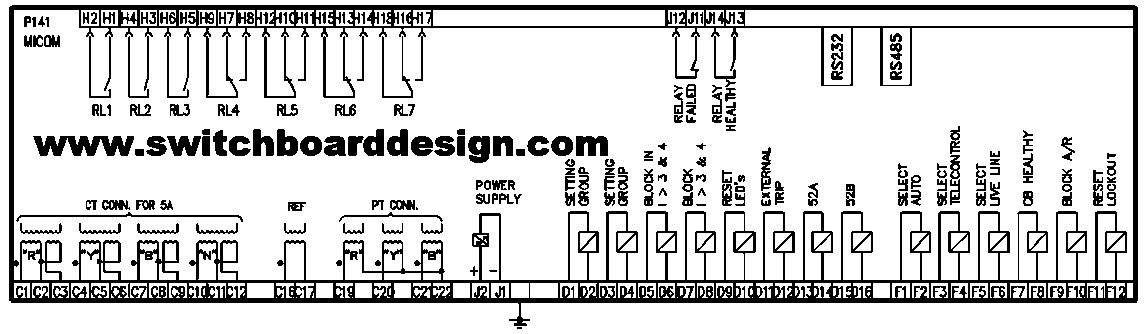

Feeder Management Relays Block P141

Features and technical specifications:
1. CT inputs : 5 No’s
2. VT inputs : 4 No’s
3. Digital inputs : 8 No
4. Digital outputs : 8 No
5. RS485 Communication Port

This Feeder Management Relays Block is easily insert in your schematic diagram and connect as you like way.

The MiCOM P141 feeder management relay has been designed for the protection of a wide range of overhead lines and underground cables from distribution to transmission voltage levels. The relay includes a comprehensive range of non-protection features to aid with power system diagnosis and fault analysis. The P141 offers integral over current
and earth-fault protection and is suitable for application on solidly grounded, impedance grounded, Petersen coil grounded and isolated systems. The P145 relay model is especially suitable where a complete scheme solution is required and has 10 function keys for integral scheme or operator control functionality such as circuit breaker control, auto-reclose control and remote communications control.
