Feeder and Motor Protection Relay Block P154

Features and technical specifications:

1. Motor Protection
2. CT inputs : 1 A/5 A No’s
3. Digital inputs : 6 No
4. Digital outputs : 6 No
5. External DC power supply required
6. RS 485 Communication Port

The following functions are available:
1. Optimised protection for feeder/motor applications
2. Measurement / protection / monitoring in one box
3. Diagnostic / maintenance facilities
4. Accurate metering for feeder applications including phase & neutral current, thermal state, positive & negative
sequence current
5. Circuit Breaker monitoring including operation counter, trip counter, and operating time
6. Metering for motor applications including load current, time to thermal trip, total motor running hours
7. Motor start monitoring including number of starts, number of emergency starts

Applications
Feeder Protection for:
1. Cables and Overhead lines deployed in MV/LV networks
2. Backup in HV systems
3. Different types of earthing systems
4. MV industrial installations, public distribution networks and substations

Motor Protection for:
1. Small and medium size induction motors
2. MV industrial installations

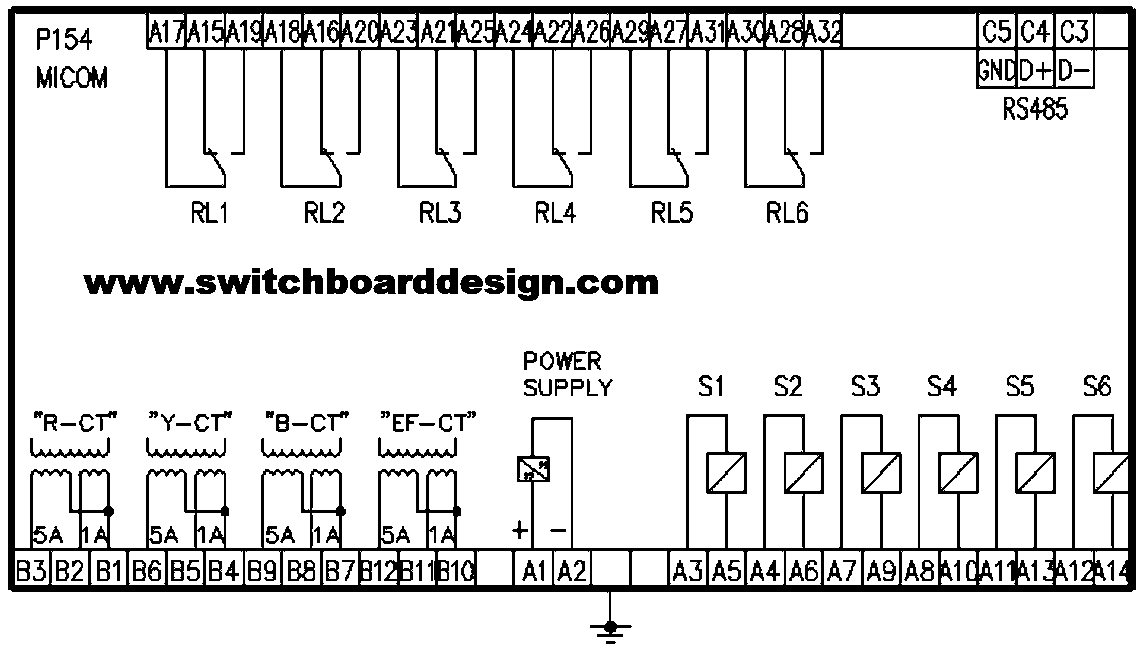

This Feeder and Motor Protection Relay Block is easily insert in your schematic diagram and connect as you like way.

The P154 is an economical choice, designed for deployment in volume, in lower-voltage systems. It offers non directional over current and earth fault protection, with its functions designed to cover a wide range of applications in the protection of cables and overhead lines deployed in industrial installations, public distribution networks, and substations. The P253 is designed to protect motors in industrial networks and power plants. It offers essential protection functions for motors deployed in installations from LV to MV voltage levels. The P253 relay performs an important role in many industrial processes with its diagnostic features improving asset health monitoring. The P154 and P253 relays offer supervision features such as measurement, monitoring and recording functions. Communication protocols are available for transmitting relay data to a supervisory control system via communication networks. The operator interface allows reading of measured values and simple configuration of the relay. The setting software
facilitates configuration and access to all the stored information for monitoring, maintenance and troubleshooting purposes. P154 and P253 relays are housed in a robust metal case suitable for panel mounting.
