Motor Protection and Control Relay Block REM615A

Features and technical specifications:

Motor Protection
CT inputs : 4 No’s
Binary inputs : 12 No
Binary output’s : 4 NO & 6 C/O
RTD : 6 No
External DC power supply required
RS485 Communication Port

Also available:-
1. Disturbance and fault recorders
2. Event log and recorded data
3. High-Speed Output module (optional)
4. Local/Remote push button on LHMI
5. Self-supervision
6. Time synchronization: IEEE 1588 v2, SNTP, IRIG-B
7. User management
8. Web HMI

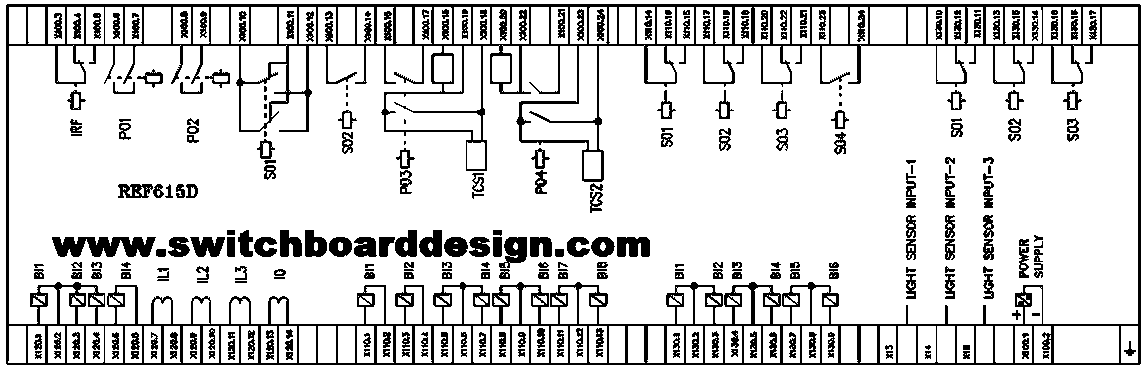

This Motor Protection and Control Relay Block is easily insert in your schematic diagram and connect as you like way.

the standard configuration can also be applied for contactor controlled motors. There is also an option for mA/RTD measurement and protection. The protection relay with a standard configuration is delivered from the factory with
default settings and parameters. The end user flexibility for incoming, outgoing and internal signal designation within the protection relay enables this configuration to be further adapted to different primary circuit layouts and the related functionality needs by modifying the internal functionality using PCM600. REM615 is available with four alternative standard configurations. The standard signal configuration can be altered by means of the graphical signal matrix or the graphical application functionality of the Protection and Control IED Manager PCM600. Further, the application configuration functionality of the relay supports the creation of multi-layer logic functions using various logical elements including timers and flip-flops. By combining protection functions with logic function blocks, the relay configuration can be adapted to user-specific application requirements. The relay is delivered from the factory with default connections described in the functional diagrams for binary inputs, binary outputs, function-to-function connections and alarm LEDs. Some of the supported functions in REM615 must be added with the Application Configuration tool to be available in the Signal Matrix tool and in the relay. The positive measuring direction of directional protection functions is towards the outgoing feeder.
