Auxiliary Relays Block VAA11 With (2NO+2NC)

Features and technical specifications:

1. Simple and robust construction
2. Positive action and high mechanical stability
3. Heavy duty contact available, where required
4. Slugged relays with delay on operation / reset available in ac/dc version.

The following functions are available

1. Auxiliary relay
2. Simple and robust construction
3. More number of contact configurations available with self/hand reset facility
4. Operation annunciation in the form of flag
5. Completely dust proof by IP5X class protection
Application :-
Control, alarm, indication and other auxiliary duties in ac or dc systems.

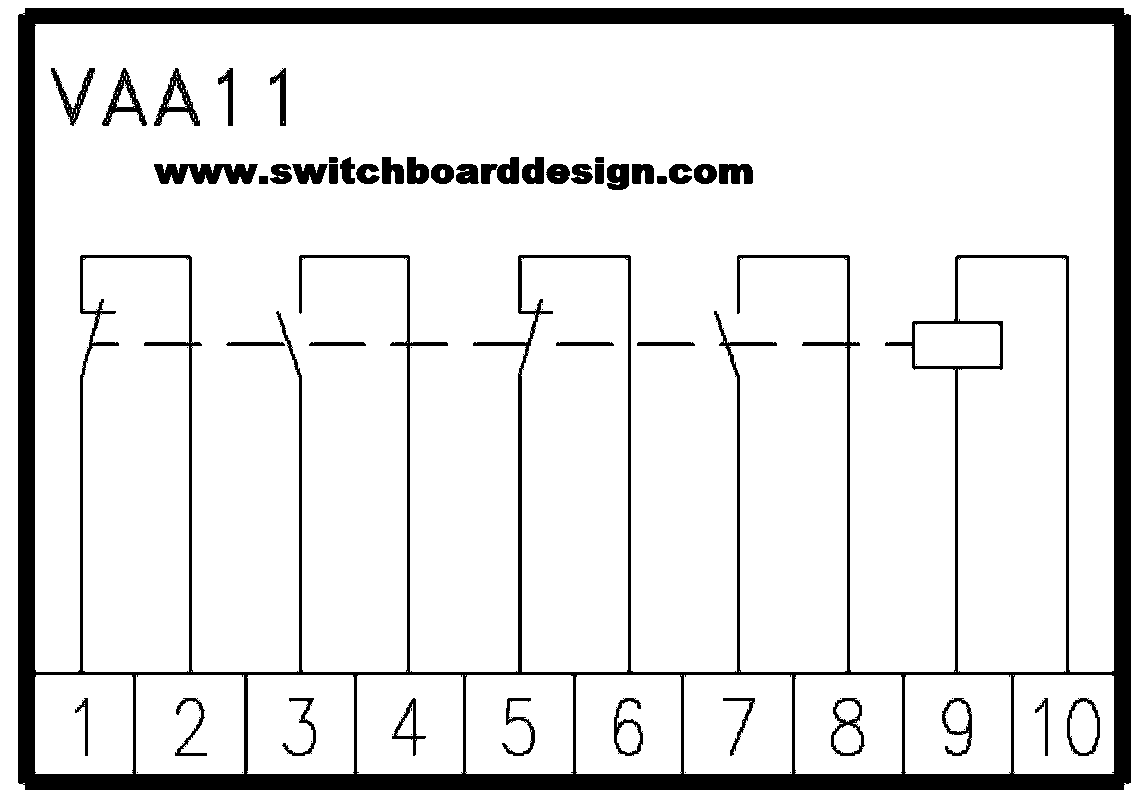

This Auxiliary Relays Block is easily insert in your schematic diagram and connect as you like way.

VAA relays are voltage operated relays. The relays are attracted armature units of compact design with positive action and a high degree of mechanical stability. The relays can be supplied with self, or hand reset contacts and changeover contacts. Standard contacts are of silver/copper alloy. They are shaped and positioned to ensure a reliable and low resistance normally open or normally closed contact. Standard VAA 11 relays are suitable for ac/dc supply. Auxiliary relays with delay on pick-up or drop-off can be supplied on specific request. Similarly relays with magnetic blow out contacts can also be supplied on specific request. The standard VAA relays provide only instantaneous self or hand reset contacts. To ensure a longer operating life, the tips of the silver contacts have a domed profile, the optimum design for the repetitive operation duties of industrial applications. Although the standard designs are suitable for dc and full-wave rectified ac systems only, alternative versions for ac operation are available.
